Engineering service · Operator interface
Industrial HMI interface design
We design operator interfaces for industrial panels: which values belong on which screen, how they are addressed, and how an abnormal state is recognised without relying on colour. The functional demo below is free to try. Template packages andpanel implementationare quoted per project once the panel, controller and point list are confirmed.
Try it: cleanroom AHU interface
All four screens are interactive. Readings are simulated in your browser, so this shows screen design and operator workflow, not plant data.
Language / 语言
Operation运行AHU-01 air handling unitAHU-01 空调机组
Scroll the schematic sideways to follow the airflow. Numbered callouts match the readings below.横向滚动可跟随气流方向。图上编号对应下方读数。
- Fresh air temp新风温度°CMW10
- Fresh air humidity新风湿度%RHMW11
- Off-coil temp盘管出口温度°CMW12
- Cooling valve position冷阀开度%MW17
- Heating valve position热阀开度%MW18
- Supply fan speed送风机频率HzMW13
- Supply fan current送风机电流AMW14
- Supply air temp送风温度°CMW15
- Supply air humidity送风湿度%RHMW16
Electric preheat电预热
Make-up air stations新风机组
MAU-02coil valve冷热阀
- Valve position feedback阀位反馈
- %
- Supply air temp送风温度
- °C
MAU-03coil valve冷热阀
- Valve position feedback阀位反馈
- %
- Supply air temp送风温度
- °C
MAU-04coil valve冷热阀
- Valve position feedback阀位反馈
- %
- Supply air temp送风温度
- °C
Monitoring监控Cleanroom fan-filter units洁净室风机过滤单元
Cleanroom 1洁净室 1All running全部运行
- 01R1-01 — Running
- 02R1-02 — Running
- 03R1-03 — Running
- 04R1-04 — Running
- 05R1-05 — Running
- 06R1-06 — Running
- 07R1-07 — Running
- 08R1-08 — Running
- 09R1-09 — Running
Cleanroom 2洁净室 21 Warning1 台警示
- 01R2-01 — Running
- 02R2-02 — Running
- 03R2-03 — Running
- 04R2-04 — Running
- 05R2-05 — Warning: Filter differential pressure high
- 06R2-06 — Running
- 07R2-07 — Running
- 08R2-08 — Running
- 09R2-09 — Running
R2-05 — Filter differential pressure high过滤器压差高
Cleanroom 3洁净室 31 Fault1 台故障
- 01R3-01 — Running
- 02R3-02 — Running
- 03R3-03 — Running
- 04R3-04 — Running
- 05R3-05 — Running
- 06R3-06 — Running
- 07R3-07 — Running
- 08R3-08 — Fault: Unit stopped — local isolator off
- 09R3-09 — Running
R3-08 — Unit stopped — local isolator off单元停机 — 就地隔离开关断开
Parameters参数Station setpoints and alarm limits机组设定值与报警限
Edits stay in this browser. Nothing is written to a controller.修改仅保存在本浏览器,不会写入控制器。
Alarms报警Active and historical实时与历史
| Level等级 | Alarm ID报警号 | Group分组 | Triggered触发时间 | Content内容 | State状态 | Action |
|---|---|---|---|---|---|---|
| Critical紧急 | A-1042 | Cleanroom 3洁净室 3 | 09:12:04 | FFU R3-08 stopped — local isolator offFFU R3-08 停机 — 就地隔离开关断开 | ACTIVE激活 | |
| Important重要 | A-1041 | Cleanroom 2洁净室 2 | 08:47:31 | FFU R2-05 filter differential pressure highFFU R2-05 过滤器压差高 | ACTIVE激活 | |
| Important重要 | A-1039 | MAU-03MAU-03 | 08:20:15 | MAU-03 switched to manual controlMAU-03 切换至手动 | ACKED已确认 | |
| Tips提示 | A-1036 | AHU-01AHU-01 | 07:05:52 | Electric preheat stage 3 released — outdoor temp above setpoint电预热三段释放 — 室外温度高于设定 | RETURNED已恢复 | |
| Tips提示 | A-1034 | AHU-01AHU-01 | 06:58:10 | Supply fan started — morning sequence送风机启动 — 晨间程序 | CLEARED已清除 |
Simulated values.模拟数值。 This console reproduces an Automation Liberty Kinco F2100E2 project (39 points, 4 screens). Readings are generated in your browser for demonstration and are not measured plant data.本 console 复现 Automation Liberty 的 Kinco F2100E2 工程(39 个点位、4 个画面)。数值在浏览器内生成,仅用于演示,不是实测数据。
39-point addressed list, bilingual
Screen, equipment, address, point name, unit, range, schematic callout.
Download freeAHU schematic, vector
Line-only P&ID style. Cooling and heating are distinguished by coil orientation, valve direction, condensate drain and label — never by colour alone.

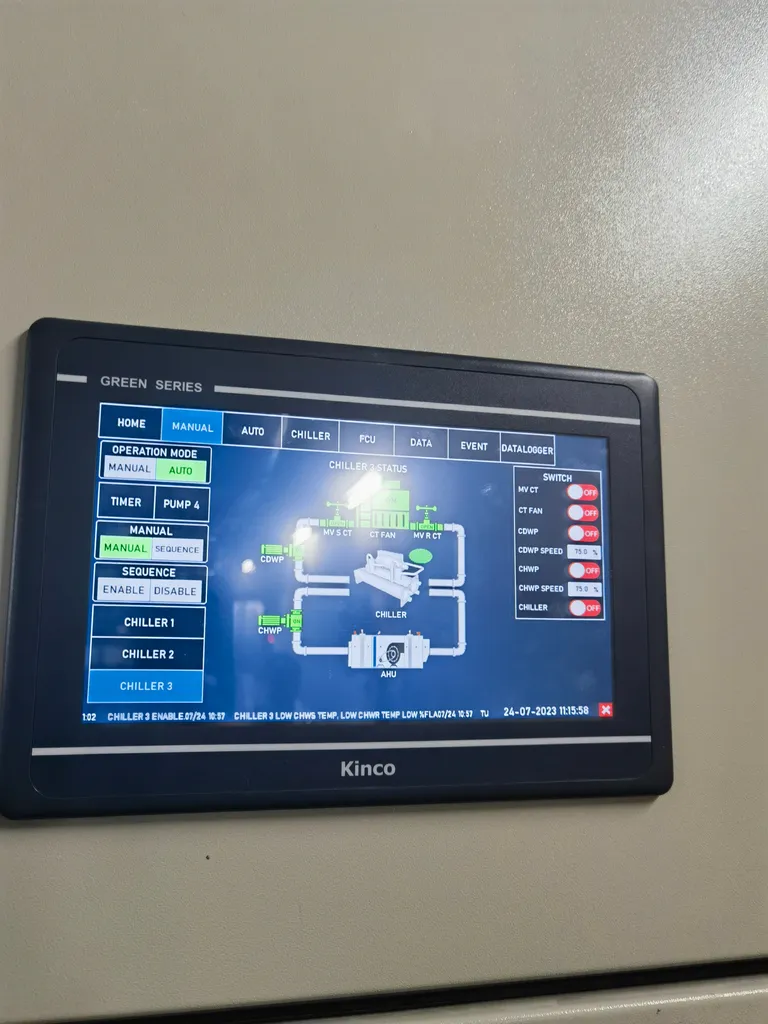

Download freeThe same job on a real panel
The demo above is a cleanroom air-handling unit. This is the same class of job installed and running: one screen carrying the sequence, the pump and valve states, and the alarm condition an operator has to act on.
Screen architecture is decided before artwork either way — which values belong on which screen, how they are addressed, and how an abnormal state is recognised without relying on colour alone.
Alarm states, as operators actually see them
The demo shows how an abnormal state is meant to read. These are the same job on customer machines.

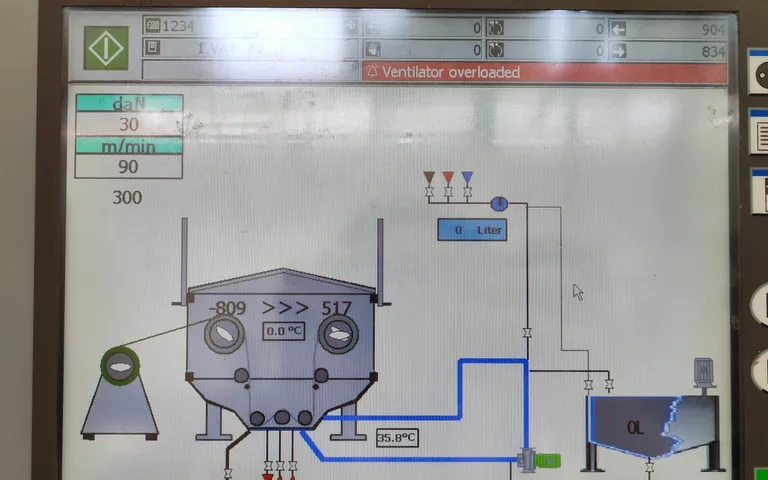

Customer site — an alarm banner over a running process graphic.

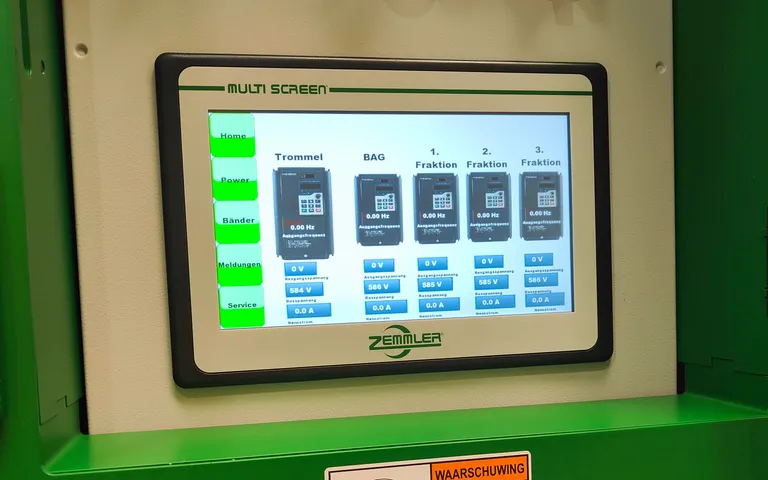

Customer site — a batching screen.
Customer site — a machine screen on a production line.
How a design runs
Send the panel and the point list
Panel model, controller, I/O list and the machine states an operator has to act on. A photo of the existing screen helps if one exists.
Screen architecture first
We return which values belong on which screen and how they are addressed, before any artwork is drawn. This is the step that decides whether the interface works.
Design and review
Screens are laid out against your panel resolution, with the state ladder and alarm discipline agreed in writing.
Hand-off or implementation
Take the design package and build it yourself, or we build it on your panel and controller. Both are quoted against the agreed scope.
What this does not cover
- Screen design is not controller logic. Interlocks, sequences and safety functions stay with the responsible engineer.
- A point list is a starting structure. Addressing, protocol mapping and I/O count are confirmed against your controller before configuration begins.
- We do not resell vendor project files. Every design is authored here and its provenance is recorded.
- Price is agreed per project after the scope is confirmed. Nothing is charged through this website.
Questions asked before a quote
Can I try the interface before paying anything?
Yes. The demo below runs in your browser with all four screens interactive, and the sample point list and equipment schematic download free. That is enough to judge the screen structure and the alarm discipline before any money is discussed.
What does a template package contain?
The editable design sources, every page element exported separately as a slice, and high-resolution artwork at panel resolution, covering a stated number of screens. It does not contain a compiled panel project or controller logic — those are implementation work.
Do you design for panels you do not supply?
Yes. The design is dimensioned against your panel resolution whoever made it. Where the panel is one of the HMIs we supply, the layout is checked against its exact pixel grid.
How is this priced?
Per project, after the panel, controller, point count and screen count are confirmed. Payment is arranged directly with you rather than through this website.
Send the panel and the point list
Panel model, controller and the states an operator has to act on. We return the screen architecture before any price is agreed. Already have a project to assess? Start with ascoped review.
