HMI
Send the current HMI model, panel cutout, PLC and screen project. We will check the display, ports and software, then explain what can be reused and what must be rebuilt.
No models match your search. Try another model or name, or reset the search.
G2070HE
G2070HE HMI| Display | 7-inch TFT |
|---|---|
| Resolution | 1024×600 |
| Touch | 4-wire precision resistive |
| Connectivity | LAN0: 10/100 Mbps |
G2070HE-4G
G2070HE-4G HMI| Display | 7-inch TFT |
|---|---|
| Resolution | 1024×600 |
| Touch | 4-wire precision resistive |
| Connectivity | LAN0: 10/100 Mbps; 2G/3G/4G cellular |
G2070HE-WIFI
G2070HE-WIFI HMI| Display | 7-inch TFT |
|---|---|
| Resolution | 1024×600 |
| Touch | 4-wire precision resistive |
| Connectivity | LAN0: 10/100 Mbps; IEEE 802.11 b/g/n, AP mode |
G2100E
G2100E HMI| Display | 10.1-inch |
|---|---|
| Resolution | 1024 × 600 |
| Touch | resistive |
| Connectivity | LAN0, 10/100 Mbps |
G2100E-WIFI
G2100E-WIFI HMI| Display | 10.1-inch TFT |
|---|---|
| Resolution | 1024×600 |
| Touch | 4-wire precision resistive |
| Connectivity | LAN0: 10/100 Mbps; IEEE 802.11 b/g/n, AP mode |
G2100E-4G
G2100E-4G HMI| Display | 10.1-inch TFT |
|---|---|
| Resolution | 1024×600 |
| Touch | 4-wire precision resistive |
| Connectivity | LAN0: 10/100 Mbps; 2G/3G/4G cellular |
F2070E2
F2070E2 HMI| Display | 7-inch TFT |
|---|---|
| Resolution | 800×480 |
| Touch | 4-wire precision resistive |
| Connectivity | LAN0: 10/100/1000 Mbps; LAN1: 10/100 Mbps |
F2100E2
F2100E2 HMI| Display | 10.1-inch TFT |
|---|---|
| Resolution | 1280×800 |
| Touch | Not specified |
| Connectivity | 2× Ethernet |
F2156E2
F2156E2 HMI| Display | 15.6-inch TFT, 16:9 widescreen |
|---|---|
| Resolution | 1920×1080 (Full HD) |
| Touch | 4-wire resistive (3H) |
| Connectivity | 2× Ethernet |
F2156E2-PX
F2156E2-PX HMI| Display | 15.6-inch TFT, 16:9 widescreen |
|---|---|
| Resolution | 1920×1080 (Full HD) |
| Touch | Capacitive glass |
| Connectivity | 2× Ethernet + Wi-Fi |
These panels, in service
Operator interfaces running on customer machines — the same job the HMI design service scopes.

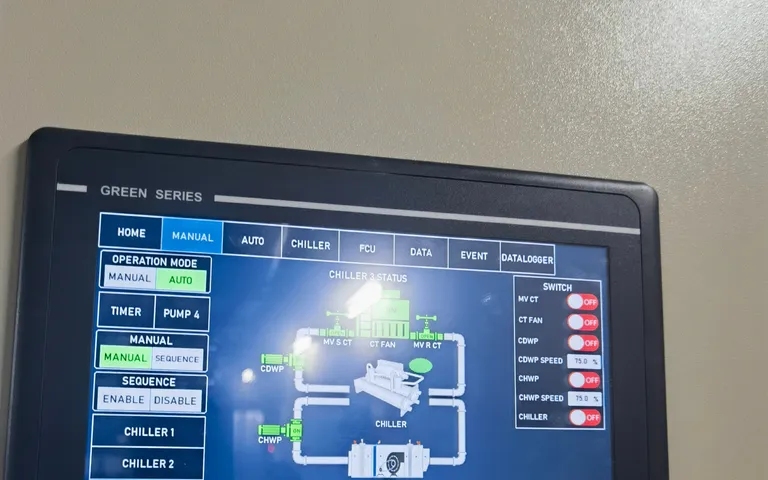

Customer site — a chiller sequence screen.

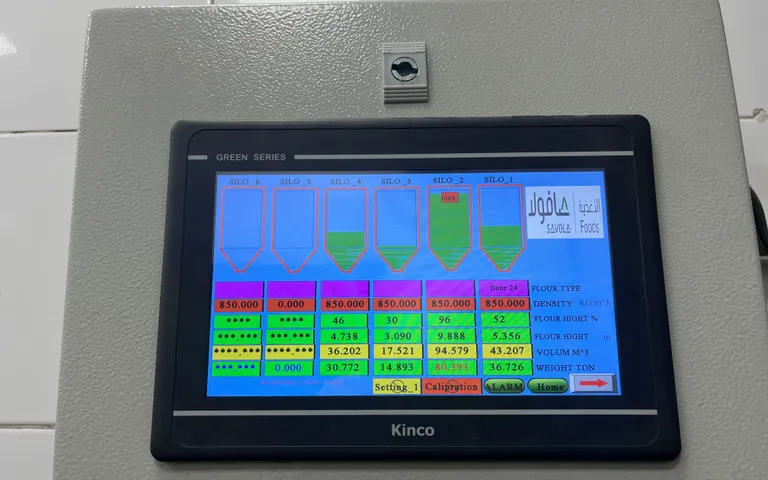

Customer site — a process overview screen.

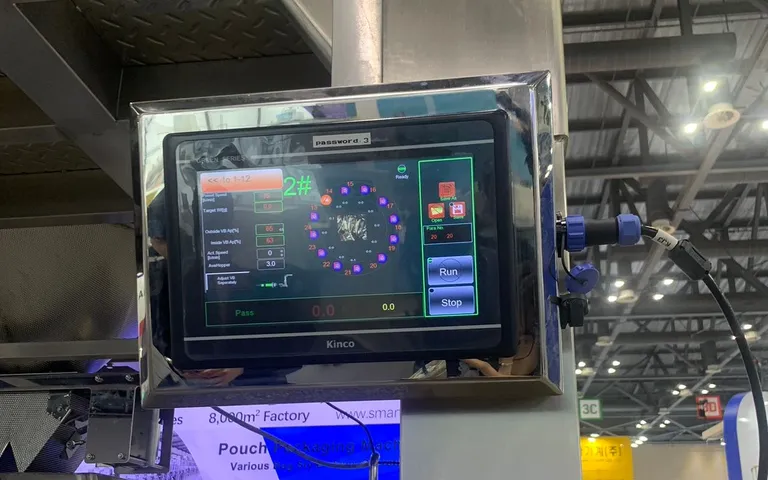

Customer site — a machine screen on a production line.

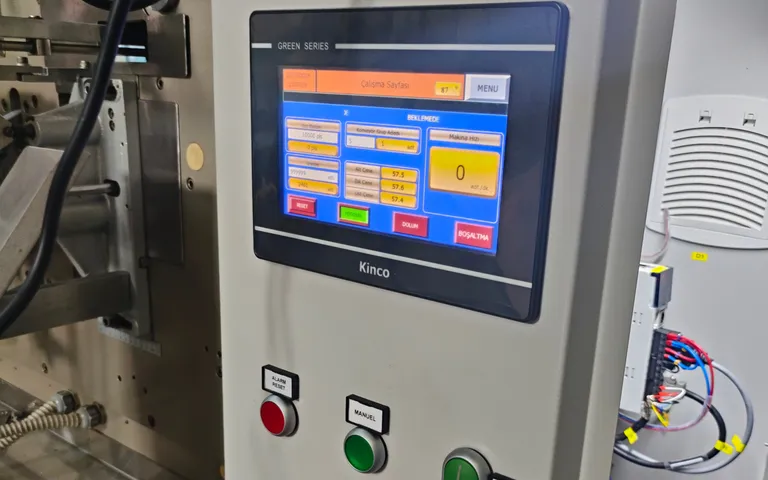

Customer site — a packaging machine panel.

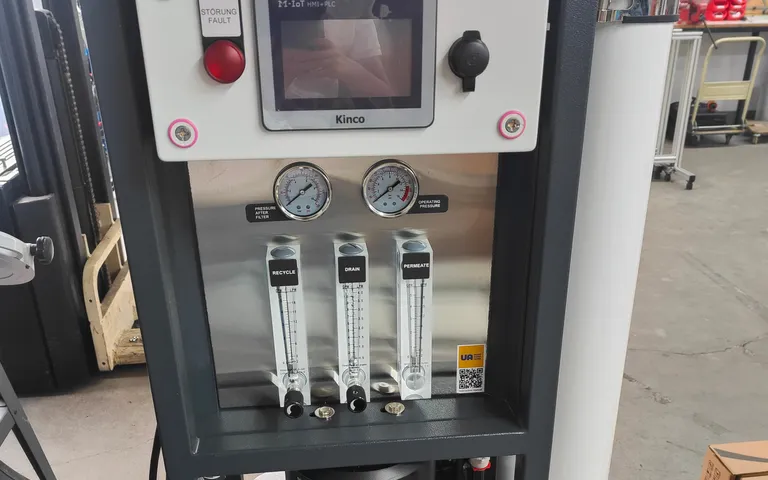

Customer site — a water treatment skid panel.

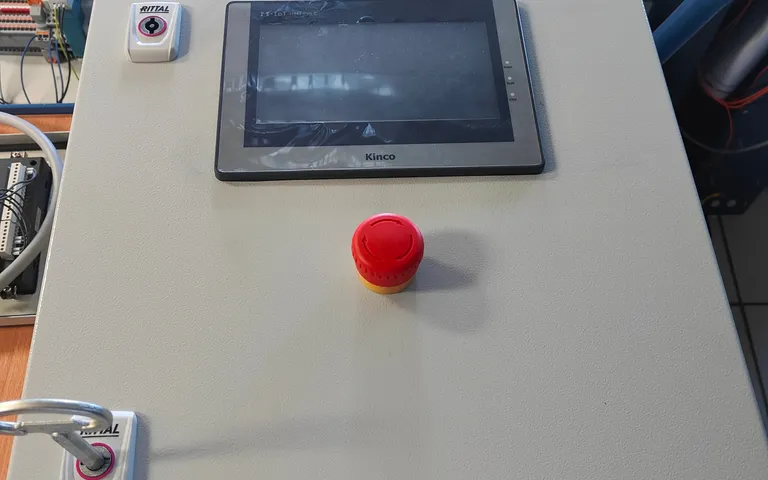

Customer site — a cabinet door with interface and emergency stop.
HMI — common questions
Will a new HMI work with my existing PLC?
We check the protocol, driver, ports and tag map first. If screens or tags need to be rebuilt, we include that in the review.
Can you match my HMI screen size and cutout?
Send the current model and cutout dimensions. We will check the panel size, mounting, power and environment.
Request engineering review
Have us review your hmi requirement
Send the application, quantity and target date. We will check fit and availability.
