Mounting and cutout
- Housing
- IP67 metal, DIN-rail or wall mounting
- Dimensions
- 175 x 104 x 53.2 mm, 692g
TNS5500D
TNS5500D Series

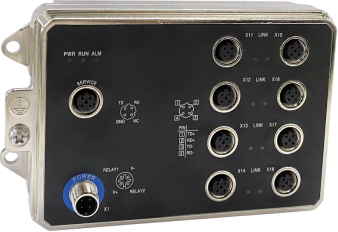

3onedata TNS5500D: Redundancy: SW-Ring, STP/RSTP; Power: 9~36VDC, M12 (male) 4-pin A-coded, non-polarity. We confirm application fit and availability at RFQ.
- Redundancy
- SW-Ring, STP/RSTP
- Power
- 9~36VDC, M12 (male) 4-pin A-coded, non-polarity
- Operating temperature
- -40~75C operating, -40~85C storage
- Dimensions
- 175 x 104 x 53.2 mm, 692g
Lead time confirmed within 1 business day
1business day first reply
Replacement and compatibility
Protocols and drivers
- Management
- SNMP v1/v2c, port mirroring, QoS, LLDP, loop protection, file management, log management, port statistics
- Redundancy
- SW-Ring, STP/RSTP
| Ports | 8x 10/100Base-T(X) M12 (female), 4-pin D-coded, auto flow control, full/half duplex, MDI/MDI-X auto |
|---|---|
| Console | CLI management port (RS-232), M12 (female), 4-pin D-coded |
| Layer | Layer 2 managed, rail transit |
| Management | SNMP v1/v2c, port mirroring, QoS, LLDP, loop protection, file management, log management, port statistics |
| Redundancy | SW-Ring, STP/RSTP |
| Switching | Backplane bandwidth 7.6G, MAC 8K, packet buffer 1Mbit, delay <10us, store and forward |
| Power | 9~36VDC, M12 (male) 4-pin A-coded, non-polarity |
| Power Consumption | 2.1W no-load / 3.8W full-load @24VDC |
| Temp | -40~75C operating, -40~85C storage |
| Housing | IP67 metal, DIN-rail or wall mounting |
| Dimensions | 175 x 104 x 53.2 mm, 692g |
| Certification | CE, FCC, RoHS, UL, IEC61373 |
| Model number | TNS5500D |
|---|---|
| Brand | 3onedata |
| Category | Industrial Gateways |
| Certification | CE, FCC, RoHS, UL, IEC61373 |
| Availability | Typically in stock, quantity and lead time confirmed at RFQ |
Request quotation
Send the application, quantity and target date. We will check fit and availability.
What we check
We check the ports, topology, protocol map, timing and management needs before selecting the TNS5500D.
Managed features depend on the selected hardware and firmware.
A matching protocol name does not guarantee the same data map or timing.
Ports, topology, power, security and diagnostics need a full network check.
A line-by-line BOM review checks the whole list against the application before it becomes an order.
