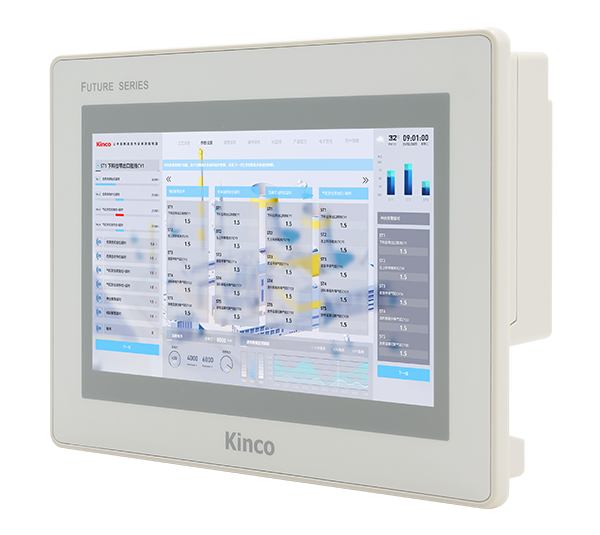

F2070E2
F2070E2 HMI
BOM & application review — reply in 1 business day
The Kinco F2070E2 is a hmi panel supplied by Automation Liberty with an engineering review of the application, exact model, protocol and selection limits. Availability and certification documents are confirmed during RFQ.
Application evidence
Planning an application with this component?Our engineers will review your architecture and confirm where the F2070E2 fits — before you commit.
Specifications
| Key specifications | |
| Screen Size | 7-inch TFT |
|---|---|
| Resolution | 800×480 |
| Brightness | 400 cd/m² |
| Backlight | LED |
| Touch | 4-wire precision resistive |
| Cpu | Quad-core ARM, 1.8 GHz |
| Memory | 1 GB RAM |
| Storage | 8 GB eMMC |
| Usb | 1× USB Host |
| Ethernet | LAN0: 10/100/1000 Mbps; LAN1: 10/100 Mbps |
| Serial Ports | COM0: RS232/RS485/RS422; COM1: RS485/RS422; COM2: RS232 |
| Power Input | DC 18–28 V (built-in isolated supply) |
| Power Consumption | 7 W @ 24 VDC |
| Dimensions | 204 × 150 × 37 mm (cut-out 192 × 138 mm) |
| Weight | 0.6 kg |
| Operating Temperature | 0 ~ +50 °C |
| Vibration Resistance | 10–500 Hz, 30 m/s², 3-axis, 1 h |
| Protection Rating | IP65 front |
| Certifications | CE (EN 61000-6-4:2019, EN 61000-6-2:2019) · UL |
| Configuration Software | Kinco DToolsPro |
| Commercial | |
| Model number | F2070E2 |
| Brand | Kinco |
| Category | HMI Panels |
| Certification | CE · UL |
| Availability | Confirm availability at RFQ |
Key specifications
Commercial
Cross-reference
Replacing another brand's component? Submit the part number and our engineers will map a candidate and confirm fit.
Submit a part number for engineering reviewCandidate replacements, subject to engineering review. Trademarks belong to their respective owners.
Engineering notes
For the F2070E2, engineering review covers screen size and cutout, the configuration project, controller driver, tag map, communication ports, and the scope of any screen or connectivity migration. Any cross-brand proposal is a candidate replacement — subject to engineering review.
- Configuration projects, screens, tags, and alarm logic do not convert automatically between HMI platforms.
- Panel cutout, power, communication ports, and the controller driver must be checked against the installation.
- Recipes, data logging, remote access, and other software functions depend on the selected platform and firmware.
Frequently asked
What applications is F2070E2 intended for?
The product record describes F2070E2 as a high-end HMI for applications that require enhanced processing and expanded communication protocols.
Which display and touch specifications are listed for F2070E2?
The specifications list a 7-inch TFT screen, 800×480 resolution, and 4-wire precision resistive touch.
Can F2070E2 replace a product from another brand?
F2070E2 may be considered as a candidate replacement — subject to engineering review. The incumbent application and this product's published specifications must be reviewed before selection.
How are availability and lead time for F2070E2 confirmed?
Availability and lead time are confirmed at RFQ. Price and warranty terms are also confirmed at RFQ.
