Mounting and cutout
- Housing
- Plastic, 90 x 33 x 16.5 mm (DB9 with terminal block) or 65 x 55 x 16.5 mm (DB25), 40g

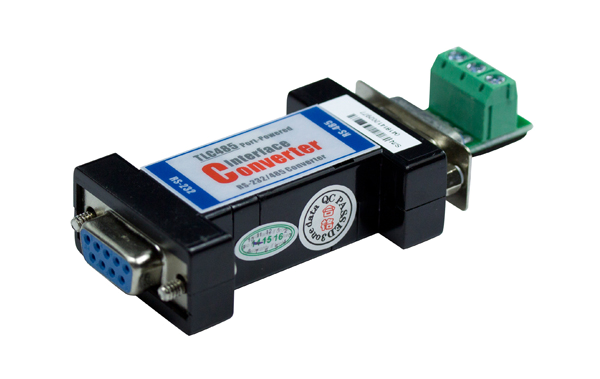

TLC485
TLC485 Series
3onedata TLC485: Power: None required; powered from the RS-232 TXD, RTS and DTR signals; Operating temperature: -20~60C operating, -25~85C storage. We confirm application fit and availability at RFQ.
- Power
- None required; powered from the RS-232 TXD, RTS and DTR signals
- Operating temperature
- -20~60C operating, -25~85C storage
Lead time confirmed within 1 business day
1business day first reply
Replacement and compatibility
Protocols and drivers
- Serial Ports
- 1x RS-232 and 1x RS-485 (EIA RS-232C, RS-485)
| Serial Ports | 1x RS-232 and 1x RS-485 (EIA RS-232C, RS-485) |
|---|---|
| Connectors | RS-232 DB9 or DB25 female; RS-485 DB9 with 3-pin terminal block, or DB25M |
| Baud Rate | 0~115200bps |
| Signals | RS-232 TXD/RXD/GND; RS-485 485+/485-/GND |
| Distance | RS-232 15m; RS-485 1200m |
| Direction Control | Automatic data flow control, direction detected automatically |
| Load | RS-485 32-point polling (128-point customisable) |
| Protection | 15kV electrostatic protection |
| Power | None required; powered from the RS-232 TXD, RTS and DTR signals |
| Power Consumption | <=10mA static, <=40mA dynamic mean |
| Temp | -20~60C operating, -25~85C storage |
| Housing | Plastic, 90 x 33 x 16.5 mm (DB9 with terminal block) or 65 x 55 x 16.5 mm (DB25), 40g |
| Model number | TLC485 |
|---|---|
| Brand | 3onedata |
| Category | Communication Modules |
| Availability | Typically in stock, quantity and lead time confirmed at RFQ |
Request quotation
Send the application, quantity and target date. We will check fit and availability.
What we check
We check the ports, topology, protocol map, timing and management needs before selecting the TLC485.
Managed features depend on the selected hardware and firmware.
A matching protocol name does not guarantee the same data map or timing.
Ports, topology, power, security and diagnostics need a full network check.
A line-by-line BOM review checks the whole list against the application before it becomes an order.
