KC100
KC100 VFD
BOM & application review — reply in 1 business day

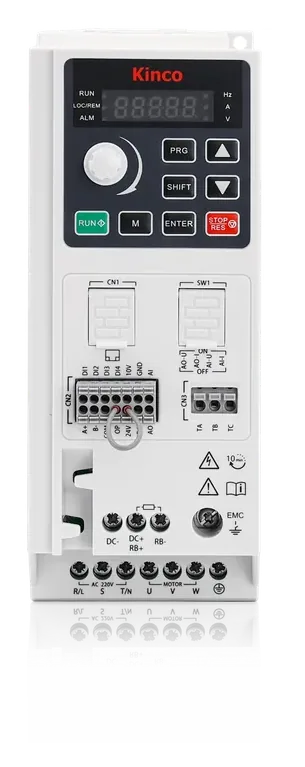

The Kinco KC100 is a general-purpose VFD with official catalog ratings of 0.4–2.2 kW at single-phase 220 V and 0.75–5.5 kW at three-phase 380 V. It provides four digital inputs, one analog input, relay, analog and digital outputs, plus standard RS485 Modbus communication. Selection remains subject to engineering review of motor data, control method, overload, braking, enclosure and environmental requirements.
Application evidence
Planning an application with this component?Our engineers will review your architecture and confirm where the KC100 fits — before you commit.
Specifications
| Key specifications | |
| Model | KC100 |
|---|---|
| Single Phase Supply | 220 V, 50/60 Hz |
| Single Phase Power Range | 0.4–2.2 kW |
| Three Phase Supply | 380 V, 50/60 Hz |
| Three Phase Power Range | 0.75–5.5 kW |
| Communication | 1 × RS485, standard Modbus protocol |
| Digital Inputs | 4 |
| Analog Inputs | 1 |
| Relay Outputs | 1 |
| Analog Outputs | 1 |
| Digital Outputs | 1 |
| Published Applications | sewage treatment, production lines, ventilation, logistics, HVAC cooling, woodworking and automated equipment |
| Commercial | |
| Model number | KC100 |
| Brand | Kinco |
| Category | VFD Drives |
| Availability | Confirm availability at RFQ |
Key specifications
Commercial
Cross-reference
Replacing another brand's component? Submit the part number and our engineers will map a candidate and confirm fit.
Submit a part number for engineering reviewCandidate replacements, subject to engineering review. Trademarks belong to their respective owners.
Engineering notes
For the KC100, engineering review covers motor nameplate data, supply and load conditions, duty, control mode, braking, terminal functions, and the required communication protocol. Any cross-brand proposal is a candidate replacement — subject to engineering review.
- The cited official catalog page confirms voltage classes, power ranges, terminal counts and RS485 Modbus, but does not publish control method, overload curve, braking provision, ingress protection or operating temperature
- those fields remain confirmed during engineering review
- The 5.5 kW series maximum applies to the three-phase range, while the single-phase range ends at 2.2 kW
Frequently asked
What applications is KC100 intended for?
The product record describes KC100 as a compact variable-frequency drive for pumps, fans, conveyors, packaging, food processing, material handling, and other space-constrained industrial machinery.
Which input, control, and communication specifications are listed for KC100?
The official catalog lists single-phase 220 V, 50/60 Hz models from 0.4 to 2.2 kW, three-phase 380 V, 50/60 Hz models from 0.75 to 5.5 kW, and standard RS485 Modbus communication.
Can KC100 replace a product from another brand?
KC100 may be considered as a candidate replacement — subject to engineering review. The incumbent application and this product's published specifications must be reviewed before selection.
How are availability and lead time for KC100 confirmed?
Availability and lead time are confirmed at RFQ. Price and warranty terms are also confirmed at RFQ.
