G2070HE-4G
G2070HE-4G HMI
BOM & application review — reply in 1 business day

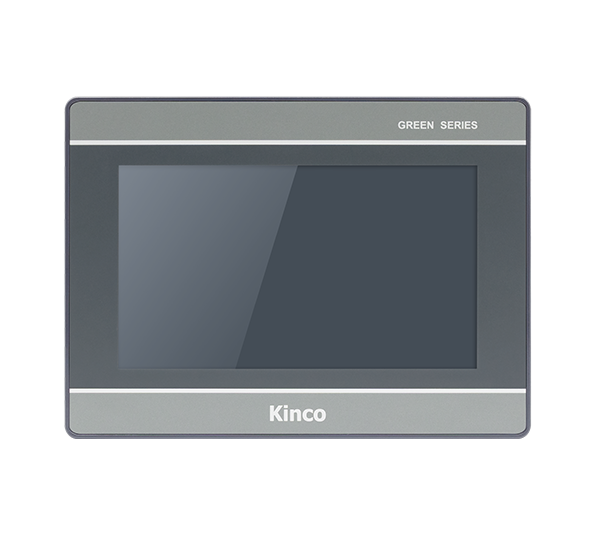

The Kinco G2070HE-4G is a hmi panel supplied by Automation Liberty with an engineering review of the application, exact model, protocol and selection limits. Availability and certification documents are confirmed during RFQ.
Application evidence
Planning an application with this component?Our engineers will review your architecture and confirm where the G2070HE-4G fits — before you commit.
Specifications
| Key specifications | |
| Screen Size | 7-inch TFT |
|---|---|
| Resolution | 1024×600 |
| Colors | 16.7M |
| Brightness | 450 cd/m² |
| Backlight | LED, >30,000 h |
| Touch | 4-wire precision resistive |
| Cpu | Quad-core ARM, 1.5 GHz |
| Memory | 512 MB RAM |
| Storage | 4 GB eMMC |
| Rtc | Built-in RTC |
| Usb | 1× USB Host; program download via LAN / USB Slave / U-disk |
| Ethernet | LAN0: 10/100 Mbps |
| Serial Ports | COM0: RS232/RS485/RS422; COM1: RS485/RS422; COM2: RS232 |
| Power Input | DC 18–28 V |
| Power Consumption | 7 W @ 24 VDC |
| Dimensions | 204 × 150 × 37 mm (cut-out 192 × 138 mm) |
| Weight | 0.5 kg |
| Operating Temperature | 0 ~ +50 °C (storage −20 ~ +60 °C) |
| Vibration Resistance | 10–500 Hz, 30 m/s², 3-axis, 1 h |
| Protection Rating | IP65 front |
| Certifications | CE (EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019) |
| Configuration Software | Kinco DToolsPro |
| Wireless | 2G/3G/4G cellular |
| Commercial | |
| Model number | G2070HE-4G |
| Brand | Kinco |
| Category | HMI Panels |
| Certification | CE |
| Availability | Confirm availability at RFQ |
Key specifications
Commercial
Cross-reference
Replacing another brand's component? Submit the part number and our engineers will map a candidate and confirm fit.
Submit a part number for engineering reviewCandidate replacements, subject to engineering review. Trademarks belong to their respective owners.
Engineering notes
For the G2070HE-4G, engineering review covers screen size and cutout, the configuration project, controller driver, tag map, communication ports, and the scope of any screen or connectivity migration. Any cross-brand proposal is a candidate replacement — subject to engineering review.
- Configuration projects, screens, tags, and alarm logic do not convert automatically between HMI platforms.
- Panel cutout, power, communication ports, and the controller driver must be checked against the installation.
- Recipes, data logging, remote access, and other software functions depend on the selected platform and firmware.
Frequently asked
What applications is G2070HE-4G intended for?
The product record describes G2070HE-4G as an HMI panel with integrated cellular connectivity for remote-monitoring applications.
Which display and wireless specifications are listed for G2070HE-4G?
The specifications list a 7-inch TFT screen, 1024×600 resolution, and 2G/3G/4G cellular wireless connectivity.
Can G2070HE-4G replace a product from another brand?
G2070HE-4G may be considered as a candidate replacement — subject to engineering review. The incumbent application and this product's published specifications must be reviewed before selection.
How are availability and lead time for G2070HE-4G confirmed?
Availability and lead time are confirmed at RFQ. Price and warranty terms are also confirmed at RFQ.
